3-in-1 Optical Multimeter Optical Fiber Tester Optical Power Meter Tester Visual Fault Locator ,Fast Responses

<p>The receiving probe adopts ABS insulation protection, which improves the safety of product use, prevents electric shock, and can also improve the test sensitivity</p><p>Automatic check function, which can automatically compensate the influence of battery power changes and environmental temperature changes</p><p>Suitable for tracking low-power metal wires such as RJ45 network cables and RJ11 telephone lines</p><p>Ultra-precise testing ability, can quickly and accurately find the target cable under the condition of strong and weak electricity mixed and electromagnetic interference</p><p>If you encounter problems during the purchase process, you can contact by email at any time, and we will reply to you within 0-8 hours</p>

• Main Functions:
• 1. Measurement of the power of optical sender (dBm and W).
• 2. Insertion loss test of optical devices.
• 3. Light source function.
• 4. Check fiber breakage, winding,ect.
• 5. New REF user-defined.

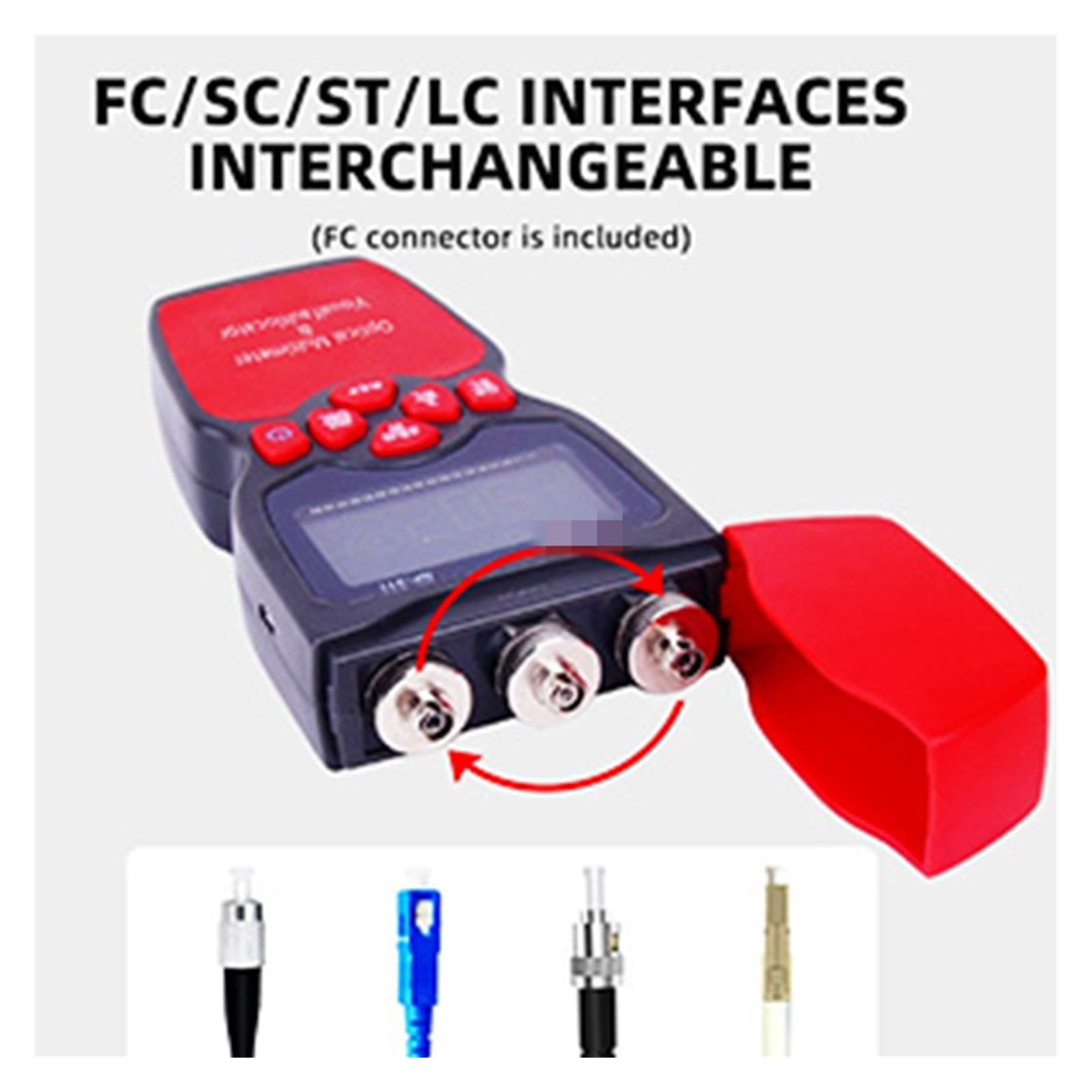

• 6. FC/SC/ST general-purpose interface.
• 7. wavelength:850/1300/1310/1490/1550/ 1625nm (power meter).
• 8 .wavelength:1310 / 1550nm( light source).
• Technical Index:
• Optical Power Meter Module
• Detector Type
• IngaAs
• Measurement Range(dBm)
• -50~+26
• Uncertainty
• 0.03
• Calibrated wavelengths(nm)
• 850, 1300, 1310, 1490, 1550, 1625nm
• Resolution (dB)
• 0.01dBm
• Identification Frequency Range
• 10Hz~60KHz

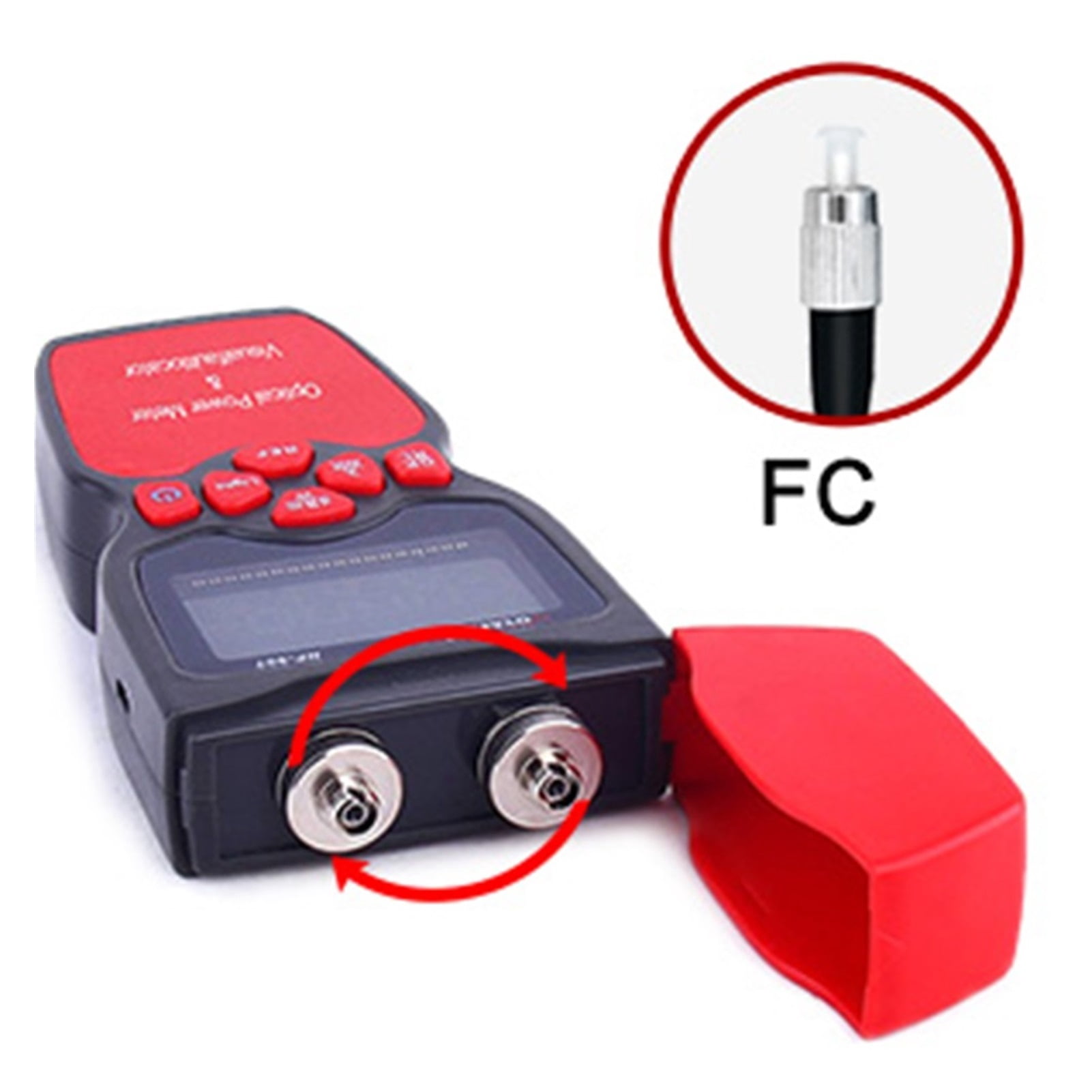

• Optical Connector
• FC (SC,ST,LC connector can be optional)
• Optical Light Source Module
• Emitter Type
• FP-LD
• Wavelengths
• 1310/1550(other wavelengths can be optional)
• Ouput Power(dBm)
• -7dBm
• Output Stability
• ±0.05dB/15mins; ±0.1dB/ 8hours
• Modulation Frequencies
• 270Hz, 1KHz, 2KHz
• Optical Connector
• FC (SC,ST,LC connector can be optional)

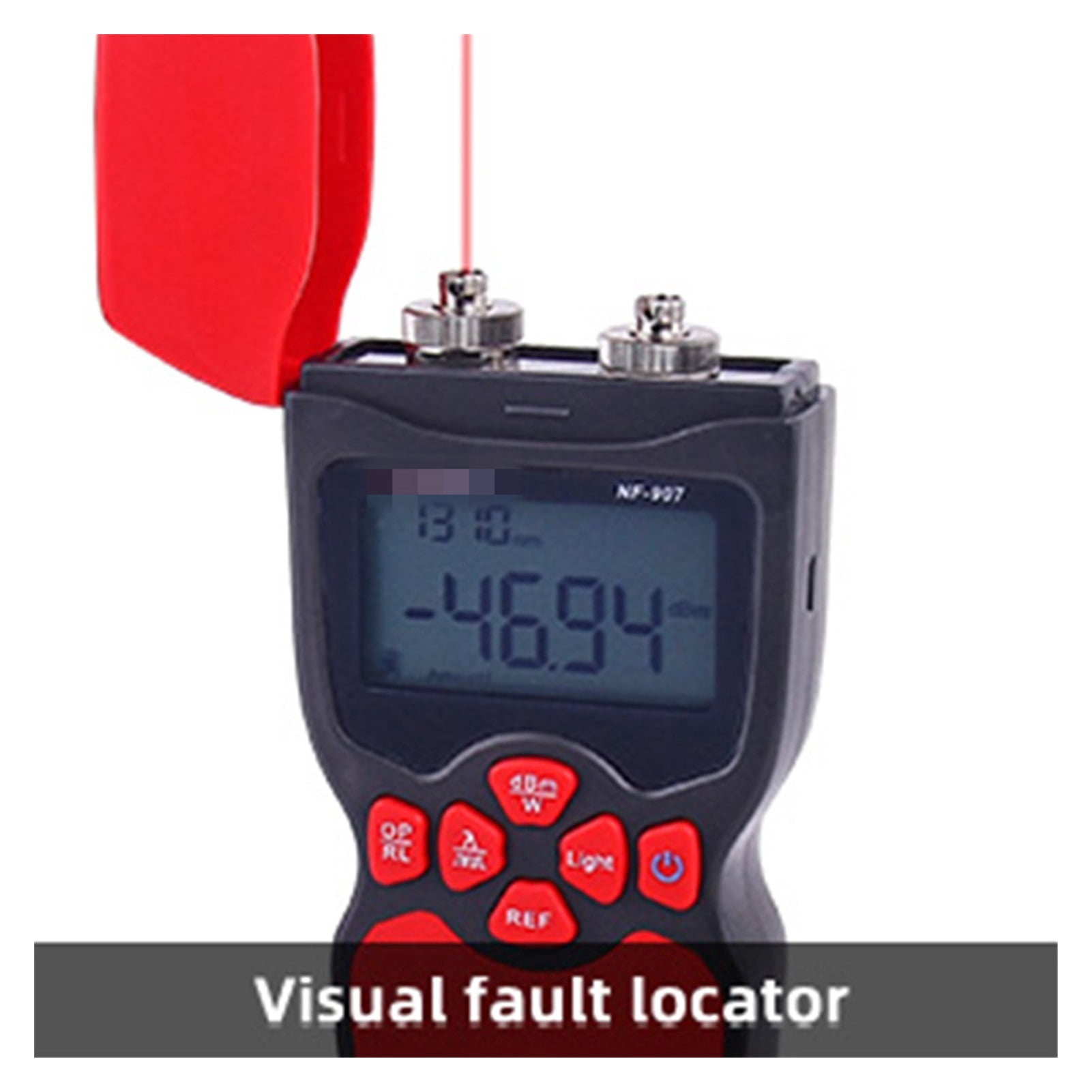

• Visual fault locator
• Emmiting Energy
• 5mw/ 10mw/ 20mw/ 30mw selectable
• Standard wavelenth
• 650±10nm
• Operation Mode
• Pulsed (2Hz) and CW
• Connector
• 2.5mm or 1.25mm Universal connector
• General Specifications of Multi Meter
• Power Supply
• 1.5V*3pcs
• Auto-off time
• 15mins
• Operating Temperature(°C)
• -10~+60
• Storage Temperature(°C)
• -25~+70
• Dimension(mm)
• 160x75x32mm
• Weight (g)
• 210
