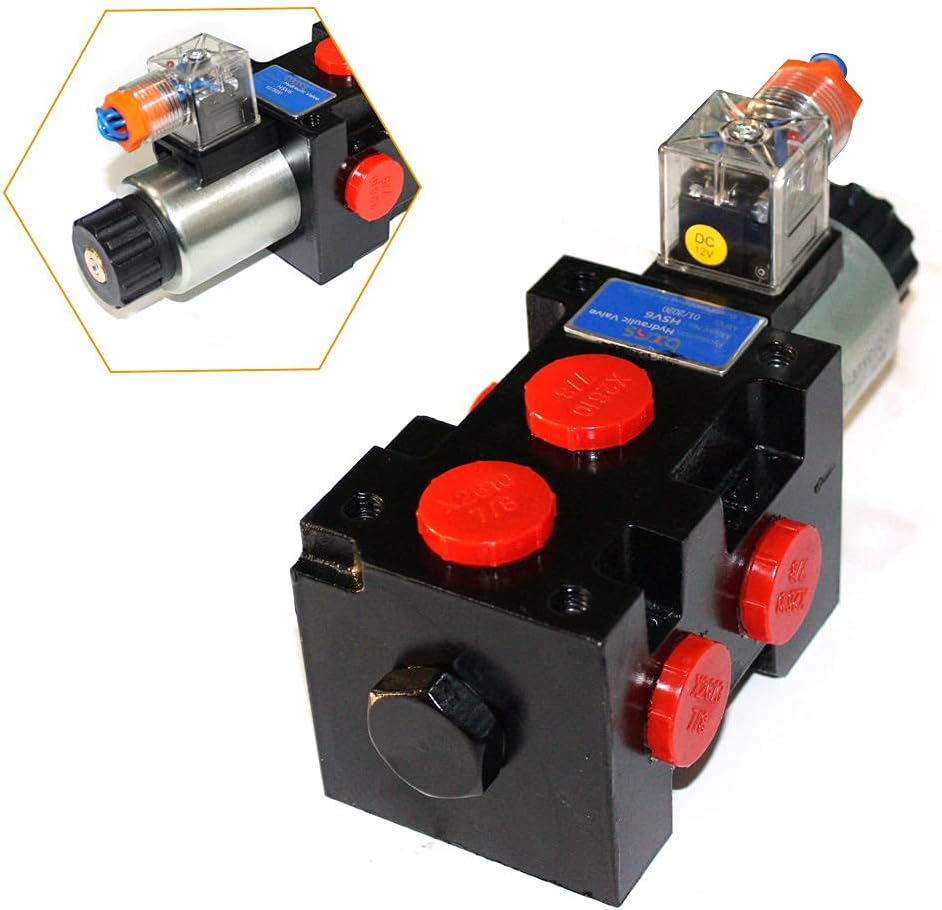

13GPM Hydraulic Solenoid Selector Diverter Valve HSV6-C DC12V 1-Spool 25MPa 50LPM
Product details
| Management number | 222649851 | Release Date | 2026/05/04 | List Price | US$19.84 | Model Number | 222649851 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications:Max Flow: 50LPMFlow Rating: 13 GPMNominal Pressure: 25MPa (3625 PSI)Voltage: DC12V, 3-plugOil Port: 7/8-14UNF（Cone seal）6 Ports with #10 SAE (3/4"-16) ThreadPackage size: 23x16x13cm/ 9x6.3x5inGross weight: 3kg/ 6.6lbPackage Content:1× Hydraulic Solenoid Selector✔️ Our warehouses are located in NJ and CA, the products can be delivered in a short time. If you have any questions or suggestions, please feel free to contact us, we will response ASAP.
- ✔️ Does not require an additional case drain line. The valve can be realized in the different flow pressure between the oil road switch.
- ✔️ -4 degrees to +158 degrees F working temperature. Works with Double or Single Acting Cylinders.
- ✔️ Multiple directional valves can be connected to feed oil into or out of different devices. Can also be connected to the oil pump, the hydraulic oil to two different oil routes.
- ✔️ Allows you to easily add an additional function to your existing hydraulic system without a lot of additional plumbing or electrical components.
- ✔️ Up to 3 valves can be manifolded together with all thread rod (not included).
| UPC | 755205198549 |
|---|---|
| Size | 23x16x13cm / 9x6.3x5in |
| Set Name | 1 |
| Brand Name | Kaibrite |
| Unit Count | 1.0 Count |
| Valve Type | diverter valve |
| Thread Size | 7/8-14UNF, 3/4"-16 |
| Thread Type | SAE |
| Manufacturer | BEVOGIE |
| Model Number | HSV6-C |
| Material Type | Carbon Steel, Stainless Steel |
| Connector Type | Plug |
| Exterior Finish | Stainless Steel, Carbon Steel |
| Number of Ports | 6 |
| Maximum Pressure | 25000000 Pascal |
| Inlet Connection Type | SAE |
| Outlet Connection Type | SAE |
